BX Series01

BX Type Gasket

Style RX type RTJ gaskets are manufactured in accordance with both API 6A and ASME B16.20 to suit API 6B and ASME/ANSI B16.5 flanges.
Style RX is a pressure-energized adaptation of the standard Style R gasket. The RX is designed to fit the same groove design as a standard Style R, making the joints interchangeable. The modified design uses a pressureenergized effect that improves the efficiency of the seal as the internal pressure of the system increases.

Pressure: 5,000-20,000 PSI

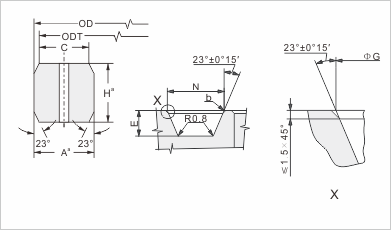

TOLERANCES:(mm)

A*(width of ring)
     +0.20,-0.000
A*(hole size)
     ±0.5
H*(height of ring)
    +0.20,-0.000
OD(od of ring)
+0.000,-0.150
23*(angle)
±1/4°

NOTE 1: Radius of the ring shall be 8%to12% of the ring height 'H'.

One pressure passage hole required per ring on centre line *A plus tolerance of 0.008inches for width *A* and height *H* is permitted. provided the variation in width or height does not exceed 0.004 inches throughout its entire circumference

Designs are also available for Subsea applications.

RING NO.	PRESSLURE ALASSES, API 6BX						OUTSIDE DIAMETER OF RING OD	HELCHT OF RING H	WIDTH OF RING A	HOLE SIZE D	GASKET WELGHT. Ibs. for APL 66x flanges
RING NO.	2000	3000	5000	10000	15000	20000	OUTSIDE DIAMETER OF RING OD	HELCHT OF RING H	WIDTH OF RING A	HOLE SIZE D	GASKET WELGHT. Ibs. for APL 66x flanges
Bx150	-	-	-	1 11/16	1 11/16	-	72.19	9.30	9.30	1.59	0.295
Bx151	-	-	-	1 13/16	1 13/16	1 13/16	76.40	9.63	9.63	1.59	0.337
Bx152	-	-	-	2 1/16	2 1/16	2 1/16	84.68	10.24	10.24	1.59	0.425
Bx153	-	-	-	2 9/16	2 9/16	2 9/16	100.94	11.38	11.38	1.59	0.632
Bx154	-	-	-	3 1/16	3 1/16	3 1/16	116.84	12.40	12.40	1.59*	0.875
Bx155	-	-	-	4 1/16	4 1/16	4 1/16	147.96	14.22	14.22	1.59	1.22
Bx156	-	-	-	7 1/16	7 1/16	7 1/16	237.92	18.62	18.62	3.18	4.14
Bx157	-	-	-	9	9	9	294.46	20.98	20.98	3.18	6.55
Bx158	-	-	-	11	11	11	352.04	23.14	23.14	3.18	9.60
Bx159	-	-	-	13 5/8	13 5/8	13 5/8	426.72	25.70	25.70	3.18	14.41
Bx160	-	-	13 5/8	-	-	-	402.59	23.83	13.74	3.18	6.75
Bx161	-	-	16 3/4	-	-	-	491.41	28.07	16.21	3.18	-
Bx162	-	-	16 3/4	16 3/4	16 3/4	-	475.49	14.22	14.22	1.59	-
Bx163	-	-	18 3/4	-	-	-	556.16	30.10	17.37	3.18	-
Bx164	-	-	-	18 3/4	18 3/4	-	570.56	30.10	24.59	3.18	-
Bx165	-	-	21 1/4	-	-	-	624.71	32.03	18.49	3.18	-
Bx166	-	-	-	21 1/4	-	-	640.03	32.03	26.14	3.18	-
Bx167	26 3／4	-	-	-	-	-	759.36	35.87	13.11	1.59	-
Bx168	-	26 3／4	-	-	-	-	765.25	35.87	16.05	1.59	-
Bx169	-	-	-	5 1/8	-	-	173.51	15.85	12.93	1.59	-
Bx170	-	-	-	6 5/8	6 5/8	-	218.03	14.22	14.22	1.59	-
Bx171	-	-	-	8 9/16	8 9/16	-	267.44	14.22	14.22	1.59	-
Bx172	-	-	-	11 5/32	11 5/32	-	333.07	14.22	14.22	1.59	-
BX303	30	30	-	-	-	-	852.75	37.95	16.97	1.59	-
