IX Series02
IX
WEIGHTS

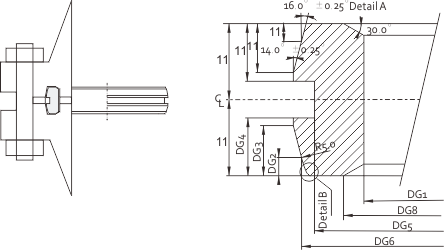

DN | NPS | IX size | Dg1 mm | DG2 mm | DG3 mm | DG4 mm | DG5 mm | DG6 mm | DG7 mm | DG8 mm | HG1 mm | HG2 mm | HG3 mm | HG4 mm | HG5 mm | RG1 mm | Weight kg |
15 | 1/2 | IX15 | 22.2 | 27.91 | 28.46 | 28.66 | 27.47 | 29.14 | 30.19 | 24.7 | 0.35 | 1.20 | 3.30 | 3.8 | 10.00 | 0.5 | 0.02 |
20 | 3/4 | IX20 | 27.2 | 32.93 | 33.47 | 33.67 | 32.48 | 34.16 | 35.20 | 29.7 | 0.35 | 1.20 | 3.30 | 3.8 | 10.00 | 0.5 | 0.03 |
25 | 1 | IX25 | 34.2 | 39.95 | 40.49 | 40.69 | 39.50 | 41.18 | 42.22 | 36.7 | 0.35 | 1.20 | 3.30 | 3.8 | 10.00 | 0.5 | 0.03 |
40 | 1 1/2 | IX40 | 49.3 | 55.84 | 56.38 | 56.58 | 55.34 | 57.11 | 58.21 | 51.9 | 0.35 | 1.27 | 3.48 | 4.0 | 10.56 | 0.5 | 0.05 |
50 | 2 | IX50 | 61.3 | 68.43 | 69.08 | 69.32 | 67.92 | 69.89 | 71.13 | 64.4 | 0.42 | 1.41 | 3.89 | 4.5 | 11.78 | 0.6 | 0.08 |
65 | 2 1/2 | IX65 | 74.4 | 82.14 | 82.79 | 83.03 | 81.52 | 83.69 | 85.05 | 77.8 | 0.42 | 1.56 | 4.28 | 4.9 | 12.98 | 0.6 | 0.12 |
80 | 3 | IX80 | 89.5 | 97.74 | 98.49 | 98.77 | 97.09 | 99.47 | 100.96 | 93.3 | 0.49 | 1.71 | 4.70 | 5.4 | 14.24 | 0.7 | 0.17 |
100 | 4 | IX100 | 115.7 | 125.17 | 126.04 | 126.36 | 124.44 | 127.15 | 128.85 | 120.1 | 0.56 | 1.94 | 5.34 | 6.2 | 16.19 | 0.8 | 0.28 |
125 | 5 | IX125 | 142.0 | 152.66 | 153.64 | 154.00 | 151.87 | 154.87 | 156.75 | 146.7 | 0.63 | 2.15 | 5.92 | 6.8 | 17.94 | 0.9 | 0.42 |
150 | 6 | IX150 | 170.2 | 182.17 | 183.25 | 183.66 | 181.32 | 184.61 | 186.66 | 175.4 | 0.70 | 2.36 | 6.48 | 7.5 | 19.64 | 1.0 | 0.62 |
200 | 8 | IX200 | 220.5 | 233.46 | 234.66 | 235.10 | 232.45 | 236.19 | 238.54 | 226.5 | 0.77 | 2.68 | 7.38 | 8.5 | 22.36 | 1.1 | 0.99 |
250 | 10 | IX250 | 274.9 | 292.64 | 294.05 | 294.57 | 291.57 | 295.78 | 298.42 | 281.7 | 0.91 | 3.02 | 8.31 | 9.6 | 25.20 | 1.3 | 1.85 |
300 | 12 | IX300 | 325.0 | 341.13 | 342.65 | 343.21 | 339.97 | 344.52 | 347.36 | 332.5 | 0.98 | 3.26 | 8.96 | 10.4 | 27.15 | 1.4 | 2.18 |
350 | 14 | IX350 | 357.1 | 373.87 | 375.38 | 375.94 | 372.58 | 377.34 | 380.32 | 365.0 | 0.98 | 3.42 | 9.39 | 11.0 | 28.46 | 1.4 | 2.60 |
400 | 16 | IX400 | 409.3 | 427.36 | 428.98 | 429.58 | 425.98 | 431.08 | 434.27 | 417.9 | 1.05 | 3.66 | 10.05 | 11.9 | 30.47 | 1.5 | 3.43 |
450 | 18 | IX450 | 459.4 | 478.90 | 480.63 | 481.27 | 477.45 | 482.85 | 486.23 | 468.6 | 1.12 | 3.87 | 10.65 | 12.7 | 32.28 | 1.6 | 4.38 |
500 | 20 | IX500 | 511.6 | 531.45 | 533.29 | 533.97 | 529.93 | 535.63 | 539.20 | 521.4 | 1.19 | 4.09 | 11.24 | 13.5 | 34.06 | 1.7 | 5.27 |
550 | 22 | IX550 | 561.7 | 583.04 | 584.99 | 585.71 | 581.62 | 587.44 | 591.18 | 572.1 | 1.26 | 4.28 | 11.78 | 14.3 | 35.69 | 1.8 | 6.48 |
600 | 24 | IX600 | 611.9 | 633.64 | 635.70 | 636.46 | 632.40 | 638.26 | 642.16 | 622.8 | 1.33 | 4.47 | 12.29 | 15.0 | 37.25 | 1.9 | 7.55 |
650 | 26 | IX650 | 664.0 | 686.37 | 688.42 | 689.18 | 685.19 | 691.09 | 695.16 | 675.5 | 1.33 | 4.66 | 12.81 | 15.7 | 38.81 | 1.9 | 8.74 |
700 | 28 | IX700 | 714.1 | 738.01 | 740.17 | 740.97 | 737.01 | 742.94 | 747.16 | 726.1 | 1.40 | 4.83 | 13.28 | 16.3 | 40.25 | 2.0 | 10.4 |
750 | 30 | IX750 | 766.3 | 790.65 | 792.92 | 793.77 | 789.83 | 795.79 | 800.16 | 778.8 | 1.47 | 5.00 | 13.76 | 17.0 | 41.69 | 2.1 | 11.8 |
800 | 32 | IX800 | 816.4 | 841.32 | 843.70 | 844.58 | 840.67 | 846.66 | 851.16 | 829.4 | 1.54 | 5.16 | 14.20 | 17.6 | 43.03 | 2.2 | 13.3 |
850 | 34 | IX850 | 866.6 | 892.10 | 894.48 | 895.36 | 891.52 | 897.53 | 902.18 | 879.9 | 1.54 | 5.32 | 14.63 | 18.2 | 44.34 | 2.2 | 14.8 |
900 | 36 | IX900 | 918.7 | 945.78 | 948.27 | 949.19 | 945.38 | 951.41 | 956.19 | 932.6 | 1.61 | 5.48 | 15.06 | 18.8 | 45.65 | 2.3 | 17.1 |
950 | 38 | IX950 | 968.8 | 996.59 | 999.08 | 1000.00 | 996.26 | 1002.30 | 1007.21 | 983.1 | 1.61 | 5.63 | 15.47 | 19.3 | 46.88 | 2.3 | 18.9 |
1000 | 40 | IX1000 | 1021.0 | 1049.28 | 1051.88 | 1052.85 | 1049.13 | 1055.19 | 1060.23 | 1035.7 | 1.68 | 5.77 | 15.88 | 19.9 | 48.12 | 2.4 | 20.9 |
1050 | 42 | IX1050 | 1071.1 | 1100.00 | 1102.70 | 1103.71 | 1100.02 | 1106.10 | 1111.26 | 1086.2 | 1.75 | 5.92 | 16.27 | 20.4 | 49.29 | 2.5 | 23.0 |
1100 | 44 | IX1100 | 1121.3 | 1150.83 | 1153.53 | 1154.54 | 1150.92 | 1157.00 | 1162.28 | 1136.8 | 1.75 | 6.05 | 16.64 | 21.0 | 50.43 | 2.5 | 25.1 |
1150 | 46 | IX1150 | 1173.4 | 1203.55 | 1206.36 | 1207.40 | 1203.82 | 1209.91 | 1251.31 | 1189.3 | 1.82 | 6.19 | 17.03 | 21.5 | 51.59 | 2.6 | 27.5 |
1200 | 48 | IX1200 | 1223.6 | 1254.39 | 1257.20 | 1257.25 | 1254.73 | 1260.83 | 1266.35 | 1239.8 | 1.82 | 6.32 | 17.39 | 22.0 | 52.68 | 2.6 | 29.9 |
